330_MHz_CRYSTAL_OSCILLATOR

Published:2009/7/10 2:37:00 Author:May | From:SeekIC

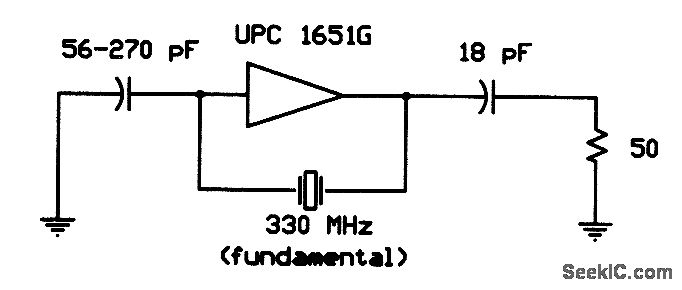

A μPC 16516G IC operates in the fundamental mode with an experimental crystal at 330 MHz. The 56-to-270 pF capacitor is not critical; about + 1-dBm RF output is available.
