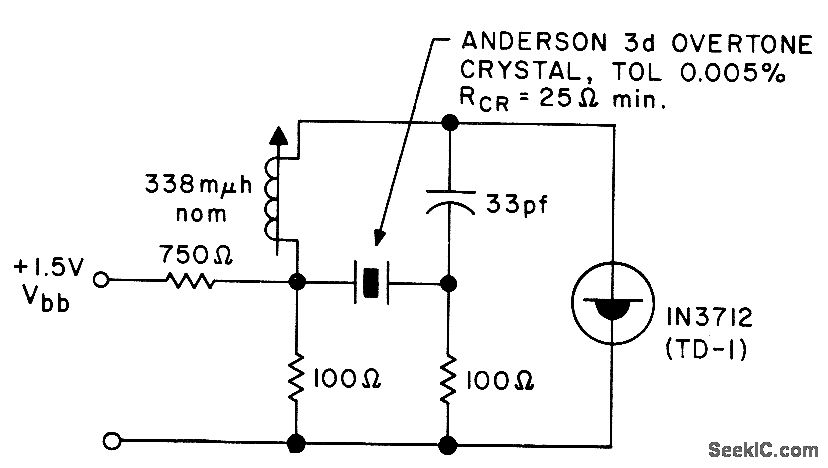

471_MC_TUNNEL_DIODE_CRYSTAL_OSCILLATOR

Published:2009/7/20 2:04:00 Author:Jessie | From:SeekIC

Used in Fire Department service. 0perates within tolerance of quartz crystal from -55 to +85℃ and bias range of 110 to 150 mv for Citizens Band service.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 353.
