Basic JFET Pierce Crystal Oscillator

Published:2012/9/17 21:42:00 Author:Ecco | Keyword: Basic , JFET, Pierce , Crystal Oscillator | From:SeekIC

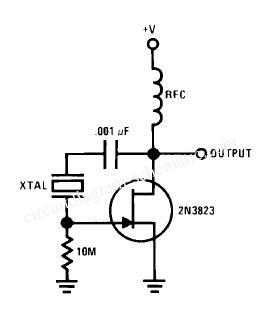

This circuit is a series of JFET Pierce Crystal Oscillator. JFET Pierce crystal oscillator allows a wide range of crystal frequencies to be used without modification of the circuit. Since the JFET gate did not contain crystals, Q both maintained that insure a good frequency stability.
