COLPITTS_ORYSTAL_OSCILLATOR

Published:2009/7/12 23:29:00 Author:May | From:SeekIC

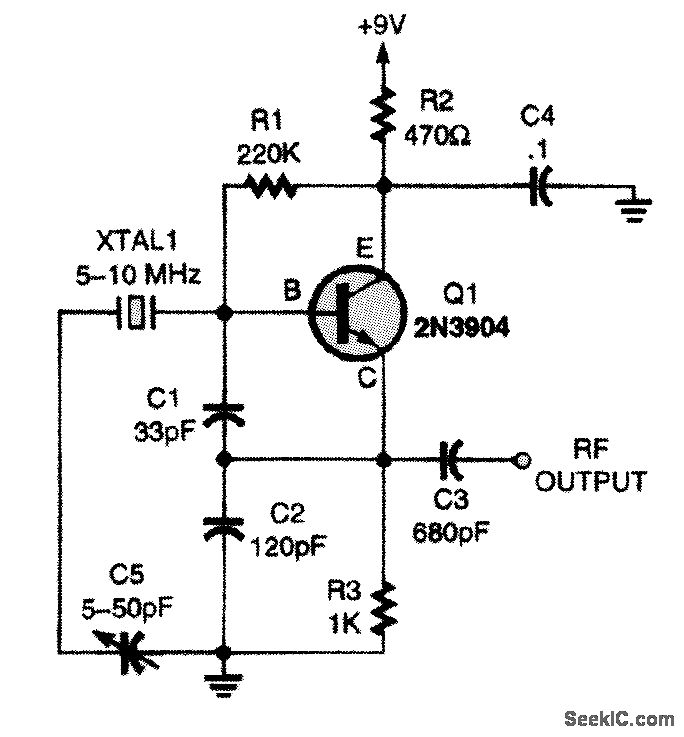

This circuit is commonly called a Colpitts oscilLcttor. C1 and C2 determine the feedback ratio that maintains oscillation. To obtain maximum frequency stability and output level, C1 and C2 should be selected for a given frequency.
