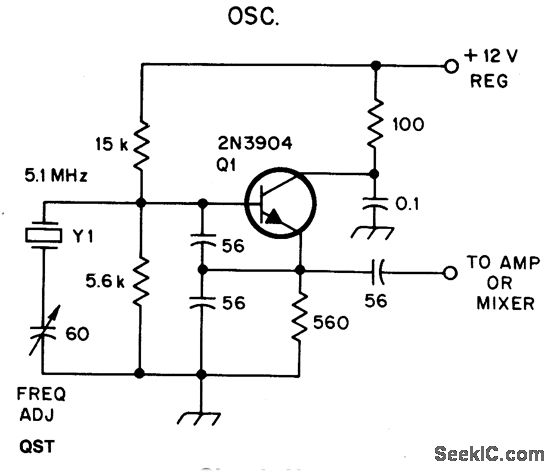

CRYSTAL_CONTROLLED_LOCAL_OSCILLATOR_FOR_SSB_TRANSMITTER

Published:2009/7/1 3:15:00 Author:May | From:SeekIC

This oscillator may contain several switched crystals to provide channelized operation.A buffer amplifter may be added, if desired.
