CRYSTAL_OR_CAPACITOR_OSCILLATOR

Published:2009/7/20 2:02:00 Author:Jessie | From:SeekIC

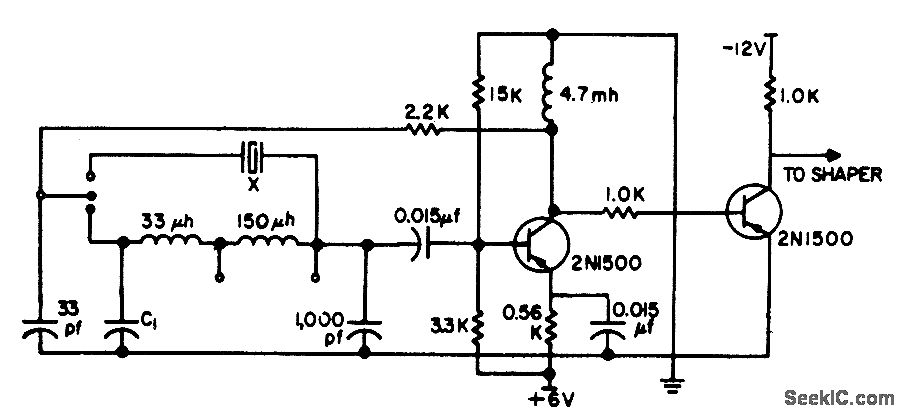

Gives high stability from 800 kc to 3 Mc, from 0 to 65℃ with either crystal or capacitor. Optimum operating frequency can be found and utilized by changing capacitor value C1 in range up to 500 pf, while awaiting delivery of CT-cut crystal at desired frequency. -T. Asai, Crystal-or-capacitor Oscillator, EEE, 12:3, p 72.
