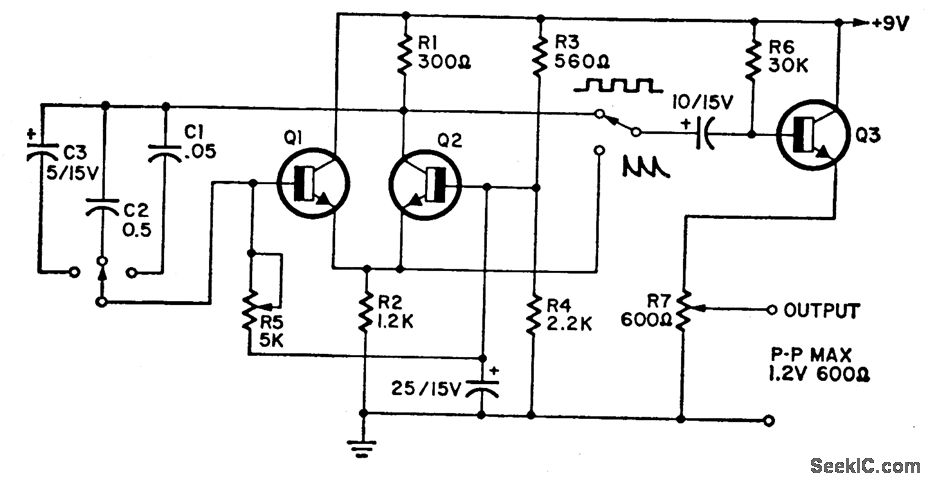

EMITTER_COUPLED_RC_OSCILLATOR

Published:2009/7/1 2:34:00 Author:May | From:SeekIC

The circuit covers 15 Hz-30 kHz and is useful as a function generator. The 2N2926 or equivalent transistors can be used.
