Electron coupled oscillator circuit

Published:2011/4/11 2:39:00 Author:may | Keyword: Electron coupled oscillator | From:SeekIC

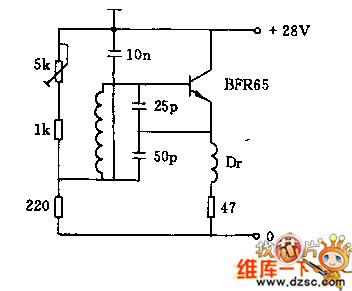

This circuit connected directly with collector, thus good for heat dissipation, under a given device parameters, the working frequency is 30MHz , the output coupling high frequency is about 0.8W. The following diagram is electron coupled oscillator circuit.
