LAST_CYCLE_COMPLETING_GATED_OSCILLATOR

Published:2009/7/9 1:36:00 Author:May | From:SeekIC

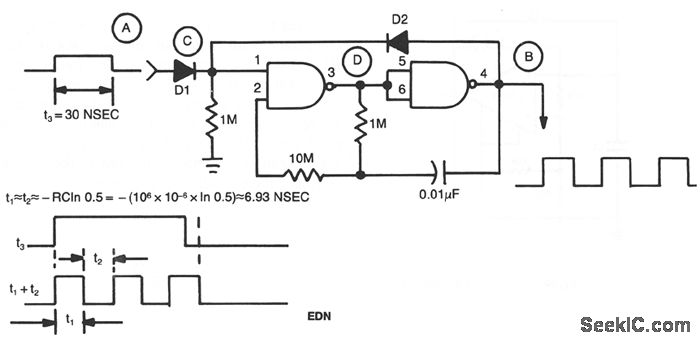

Regenerative feedback at C enables the oscillator to complete its timing cycle, rather than immediately shutting it off. The IC used was a CD4011AE, although an equivalent will work.
