LOW_NOISE_OSCILLATOR

Published:2009/7/21 2:57:00 Author:Jessie | From:SeekIC

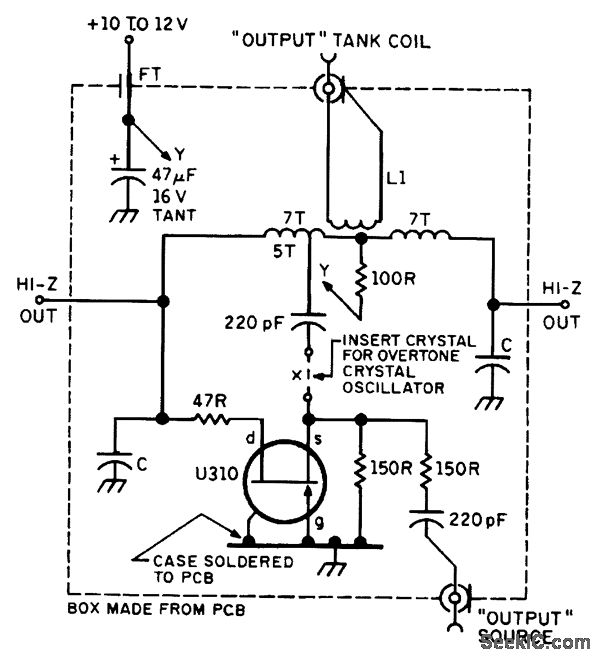

This oscillator is suitable for low-noise applications. L is wound on a 6-mm form, and C is 15 to 220 pF. The frequency range is 20 to 80 MHz. The output is 0 dBm into 50 Ω. For use of the circuit as a crystal-controlled oscillator, a crystal can be inserted as shown.
