MEASURING_OSCILLATOR_STABILITY

Published:2009/7/19 23:02:00 Author:Jessie | From:SeekIC

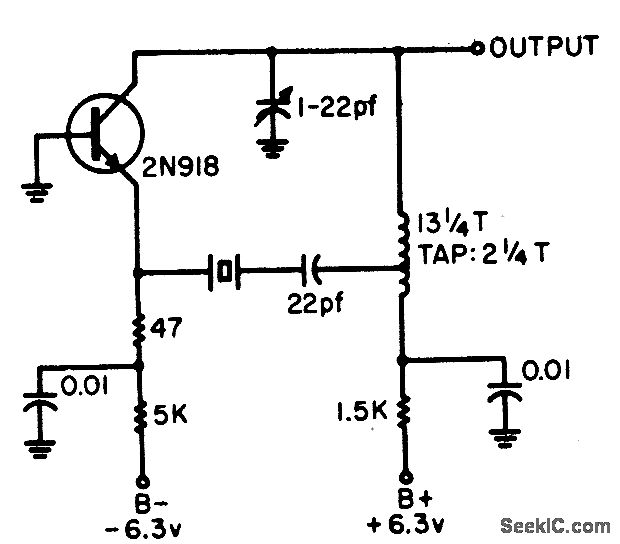

Circuit is used as 90.3125-Mc reference oscillator in system for measuring short-term stability of 45-Mc stalo (stable local oscillator) of airborne radar under high vibration. Tape transformer in collector circuit of transistor controls crystal drive.-J. Coolican, How to Measure STALO Short-Term Stability Under Vibration, EEE, 13:5, p 96-98.
