MODIFIED_HARTLEY_OSCILLATOR

Published:2009/6/23 2:18:00 Author:May | From:SeekIC

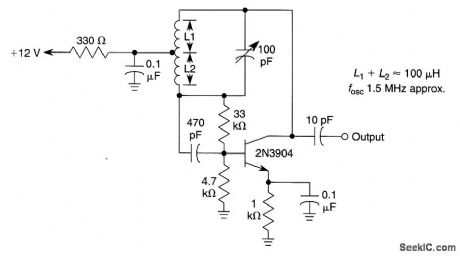

This oscillator uses a tapped coil in the collector circuit, with the tap grounded for the signal. L1 and L2 are coupled inductively and typically have a 3:1 turn ratio, and generally are sections of one entire winding.
