NE602_HARTLEY_OSCILLATOR

Published:2009/7/21 2:16:00 Author:Jessie | From:SeekIC

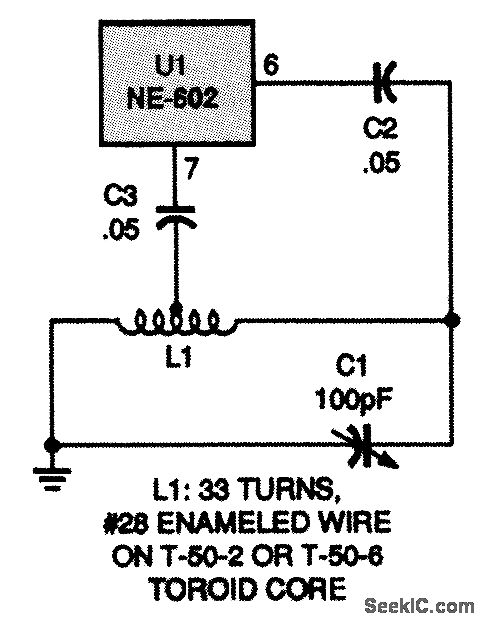

In this Hartley VFO, feedback is provided via a tap on the inductor.
