NE602_HARTLEY_VFO_CIRCUIT

Published:2009/7/21 2:12:00 Author:Jessie | From:SeekIC

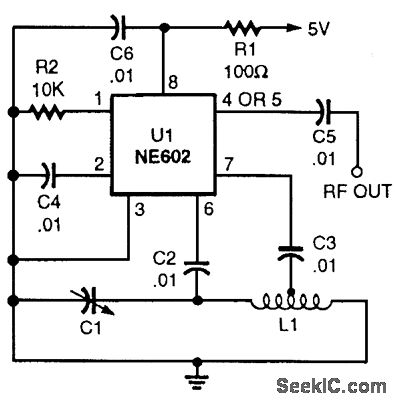

In this circuit, L1 is tapped at about one-third to one-fourth from the ground end. L1 is about 10/f MHz, while C1 is chosen to resonate L1 to the desired frequency.
