NR_DIODE_AS_R_F_OSCILLATOR

Published:2009/7/19 23:25:00 Author:Jessie | From:SeekIC

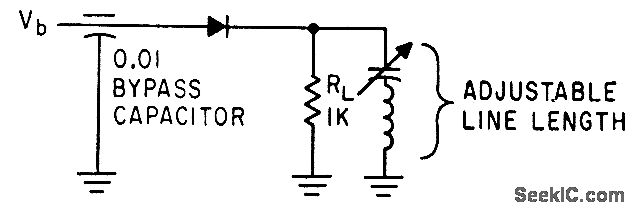

Simple negative-resistance diode circuit can develop several milliwatts at frequencies up to 300 Mc.-A. P. Schmid, Jr., Negative-Resistance Diode Handles High Power, Electronics, 34:34, p 44-46.
