OVERTONE_OSCILLATOR_WITH_CRYSTAL_SWITCHING

Published:2009/6/24 23:18:00 Author:Jessie | From:SeekIC

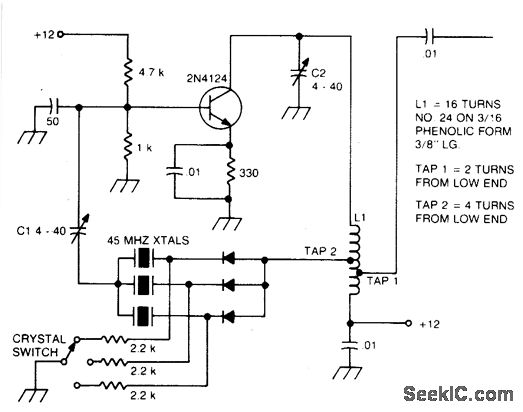

Circuit Notes The large inductive phase shift of L1 is compensated for by C1. Overtone crystals have very narrow bandwidth; therefore, the trimmer has a smaller effect than for fundamental-mode operation.
