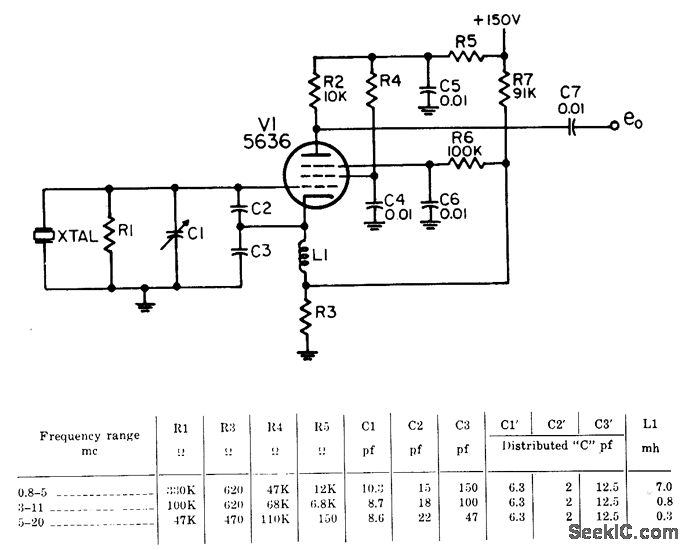

PREFERRED_08_20_MC_ELECTRON_COUPLED_COLPITTS_CRYSTAL

Published:2009/7/19 21:30:00 Author:Jessie | From:SeekIC

Provides higher output, greater harmonic content, better frequency correlation, and more immunity from effects of load changes than simpler Colpitts version. –NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1. Electron Tube Circuits, 1963, PC 102, p 102-2.
