PREFERRED_DISTANCE_MARK_DIVIDER

Published:2009/7/19 21:46:00 Author:Jessie | From:SeekIC

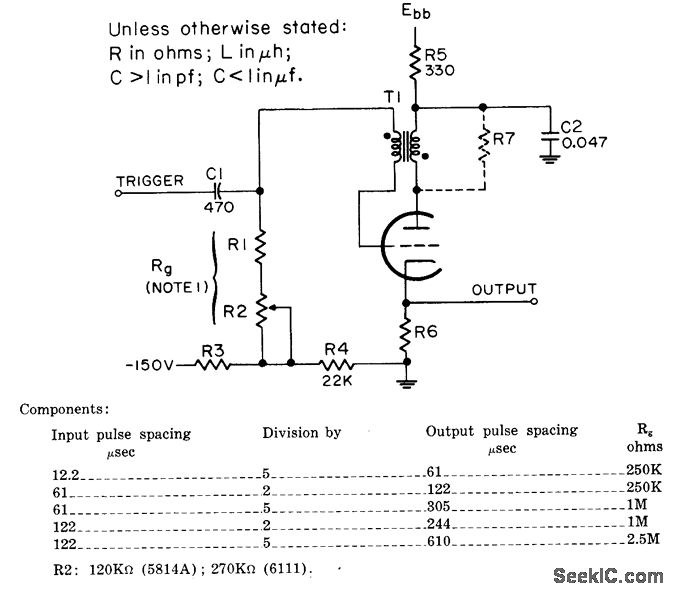

Used to generate distance marks when several must be displayed simultaneously. Maximum division factor is 5. For 5814A, R6 is 100 ohms and plate voltage is 300 V. For 6111, R6 is 150 ohms and plate voltage is 150 V. R7 should be maximum that will just suppress ringing.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol.I, Electron Tube Circuits,1963, PC 51, p 51-2.
