QUADRATURE_OUTPUTS_OSCILLATOR

Published:2009/7/10 2:39:00 Author:May | From:SeekIC

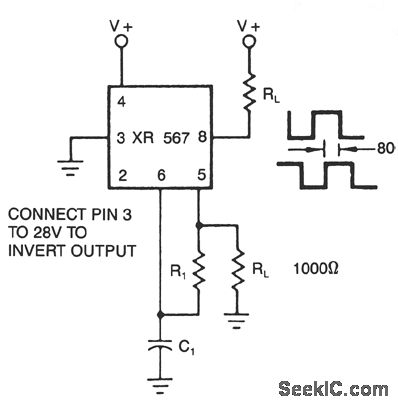

The XR-567 functions as a precision oscillator with two separate square-wave outputs at pins 5 and 8, that are at nearly quadrature phase with each othen. Because of the internal biasing arrangement, the actual phase shift between the two outputs is typically 80%.
