RAMP_GENERATOR_DRIVES_TRlGGER

Published:2009/7/19 21:39:00 Author:Jessie | From:SeekIC

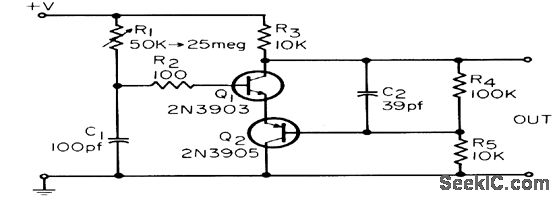

Circuit is relaxation oscillator providing short, fast pulses for triggering mvbr. Upper operating frequency is about 1 Mc for values shown. Efficiency is high yet total component cost is under $2.-C. F. Andren, High Efficiency Relaxation Oscillator, EEE, 14:4, p 43.
