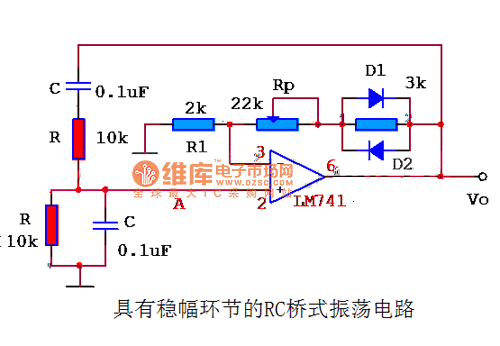

RC bridge oscillating circuit with regulating ring

Published:2011/8/19 2:28:00 Author:Jessie | Keyword: RC bridge oscillating, regulating ring | From:SeekIC

Connectingregulating ring to circuit, and adjusting potentiometer Rp, then you can use an oscilloscope to observe the output wave of oscillator circuit and the change of oscillating circuit's output wave, we will realize the influence of stability of regulating ring to sinusoidal oscillator circuit performance.
