RF oscillator circuit (2N3904)

Published:2012/9/17 21:31:00 Author:Ecco | Keyword: RF oscillator | From:SeekIC

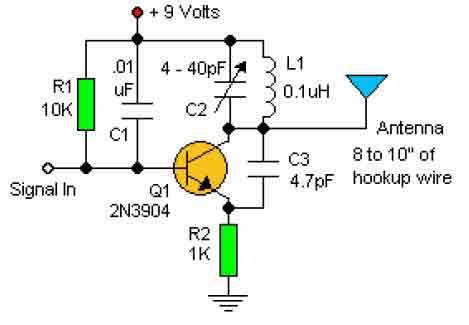

This basic RF oscillator circuit is easy to build and the components are not critical. Most of them can be found in your junk parts box. The L1 antenna col can be made by close winding 8 to 10 turns of 22 gauge insulted hookup wire around 1/4 inch form such as a pencil.
