SIMPLE_AUDIO_TEST_OSCILLATOR

Published:2009/6/24 21:50:00 Author:May | From:SeekIC

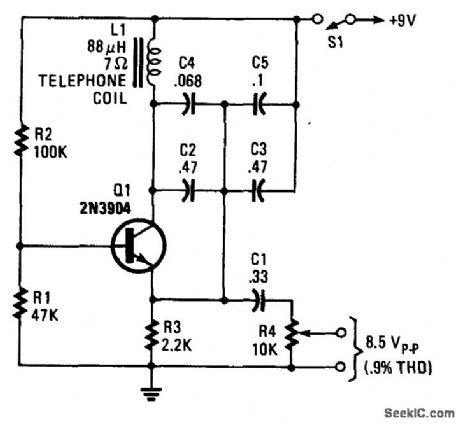

An 88-mH surplus telephone toroidal coil is used in a 1-kHz oscillator. Up to 8 V p-p into a high-Z load is available. THD is 0.9%.
