SIMPLE_SINE_WAVE_OSCILLATOR

Published:2009/6/18 21:42:00 Author:May | From:SeekIC

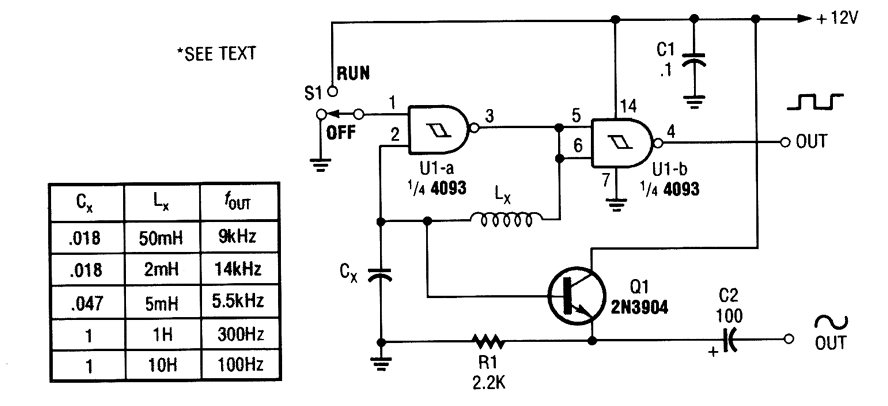

Using an LC circuit，this CMOS oscillator generates slne waves.
