SINE_WAVE_TUNNEL_DIODE_1

Published:2009/7/20 2:05:00 Author:Jessie | From:SeekIC

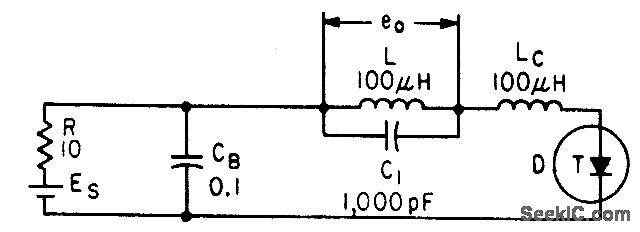

Series filter selects desired frequency and rejects harmonics from pulse-shaped output of basic tunnel-diode relaxation oscillator. Values shown give 0.45 Mc, constant within 0.05 Mc over bias range of 100 to 400 mv.-Wen-Hsiung Ko, Designing Tunnel Diode Oscillators, Electronics, 34:6, p 68-72.
