STABILIZED_HORIZONTAL_OSCILLATOR

Published:2009/7/20 21:04:00 Author:Jessie | From:SeekIC

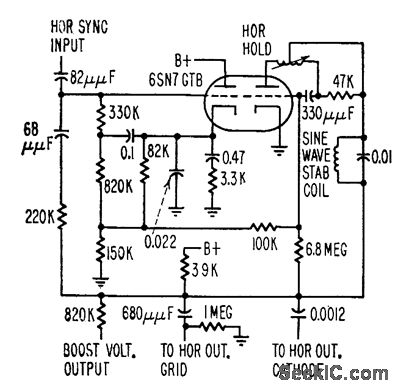

Sine-wave stabilization or ringing coil pulls Synchroguide horizontal oscillator frequency back to correct value when lube or other components drift in value.-W. E. Babcock, Unusual Tube Effects Cause Circuit Troubles, Electronics, 31:37, p 90-93.
