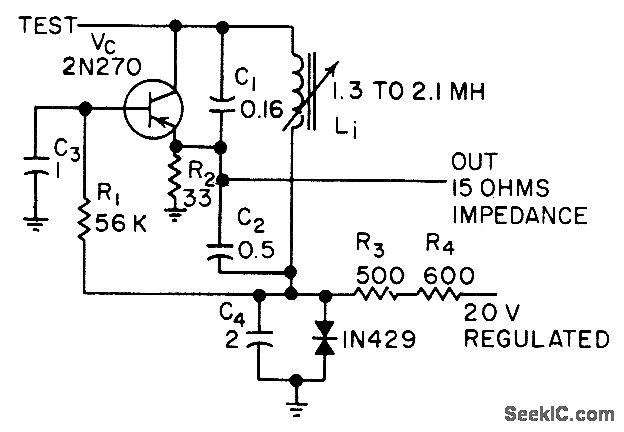

STABLE_10_KC_COLPITTS

Published:2009/7/19 22:10:00 Author:Jessie | From:SeekIC

Provides constant-amplitude carrier for data reduction system, at 0.5 V rms with amplitude stability of 0.l% and frequency drift below 0.25% for temperature range of 30 to 50℃.-L. H. Dulberger, Transistor Oscillator Supplies Stable Signal, Electronics, 31:5, p 43.
