STABLE_SUBCARRIER_OSCILLATOR

Published:2009/7/19 22:11:00 Author:Jessie | From:SeekIC

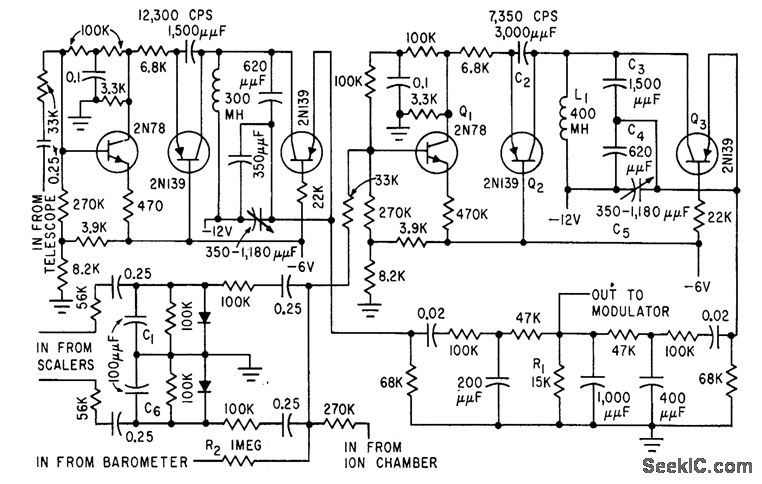

Two Colpitts oscillators, designed for 7,350 cps and 12,300 cps, are used with reactance-type frequency modulation. Input stage of each oscilllator is temperature-stabilized by d-c feedback.-D. Enemark, Balloon-Borne Circuits Sort High-Altitude Cosmic Rays, Electronics, 32:35, p 52:,55.
