STABLE_VFO

Published:2009/7/10 2:45:00 Author:May | From:SeekIC

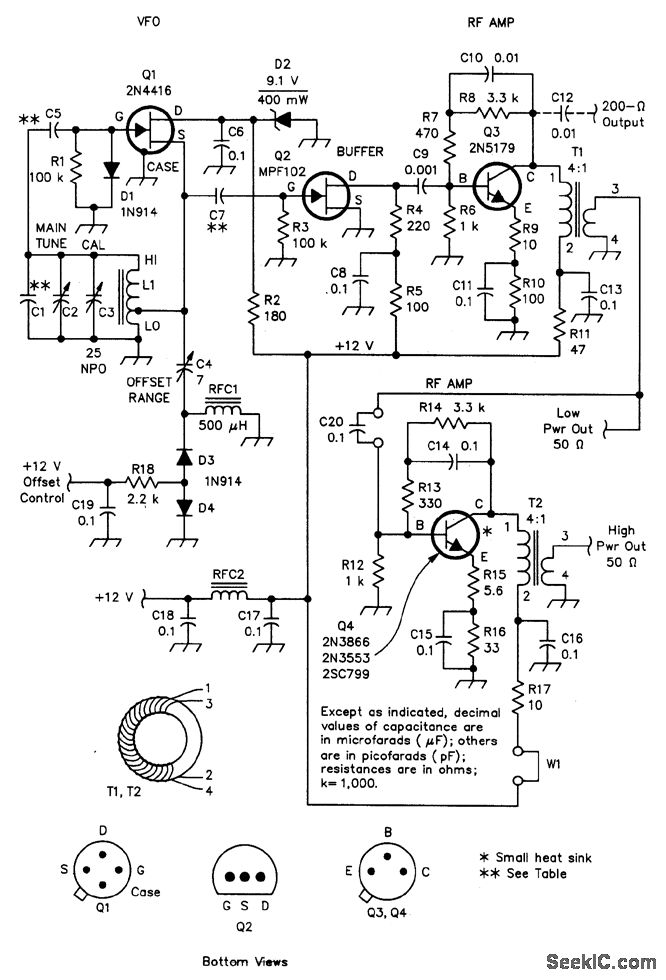

This VFO circuit covers from 2.13 to 2.58 MHz and is intended for use with an external mixer to heterodyne the signal to desired frequencies. Coil data is shown in the parts list. Two power outputlevels are available-a few hundred mW (0 to + 3 dbm) from Q3. Q4 is a class A amplifier for boosting the power to +22 dbm for driving a high-level mixer. The VFO can be operated on other frequencies, with suitable component charges (see the table).
