SUPPRESSING_OSCILLATION

Published:2009/6/28 23:36:00 Author:May | From:SeekIC

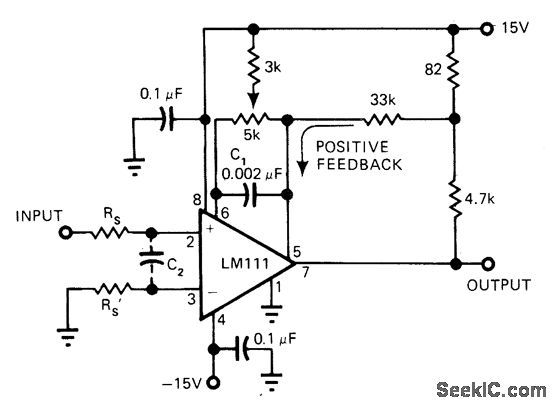

Use of positive feedback to pin 5 of comparatorgives sharp and clean output transitions even with slow triangle-wave inputs, with no possibility of comparator bursting into oscillation near crossing point. Input resistors should not be wirewound.Circuit will handle triangle-wave inputs up to several hundred kilohertz.—P. Lefferts, Overcome Comparator Oscillation Through Use of Careful Design, EDN Magazine, May20, 1978, p 123-124.
