Square wave oscillator(741)

Published:2011/8/14 7:06:00 Author:leo | Keyword: Square wave, oscillator | From:SeekIC

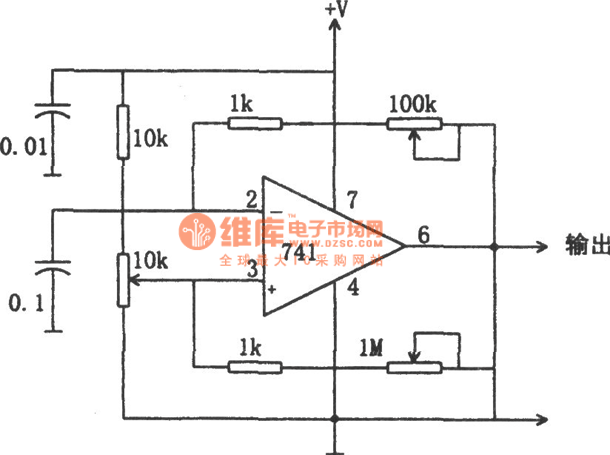

As the picture shows, this is an oscillator of square wave. It can generate the square wave with more than 100 to 1000 Hz frequency. Its frequency can be adjusted through resistor with 100kohms and 1Mohms. And the linearity of its output square wave is adjusted by resistor with 10kohms. If it only outputs at the same frequency, it can use fixed resistor to replace 100kohms and 1Mohms resistors.
