TTL_ORYSTAL_OSCILLATOR

Published:2009/7/12 23:28:00 Author:May | From:SeekIC

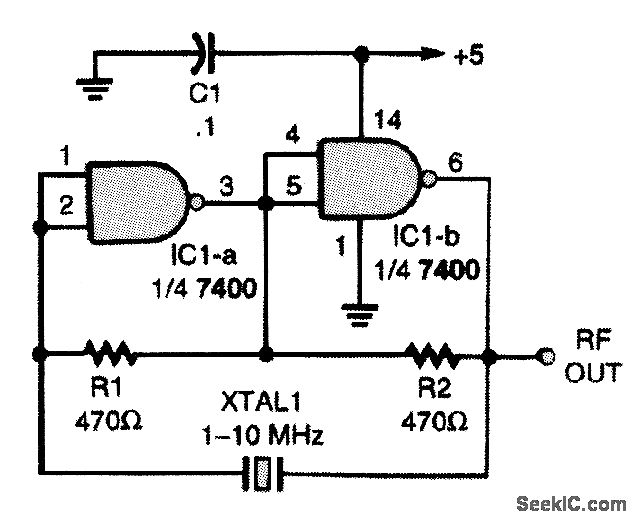

Here is an oscillator circuit that uses no L/C components. It uses two sections of a 7400 TTL IC, two resistors, and a crystal to make up a simple and stable oscillator circuit.
