TV_HORIZONTAL_SWEEP_OSCILLATOR

Published:2009/7/15 5:05:00 Author:Jessie | From:SeekIC

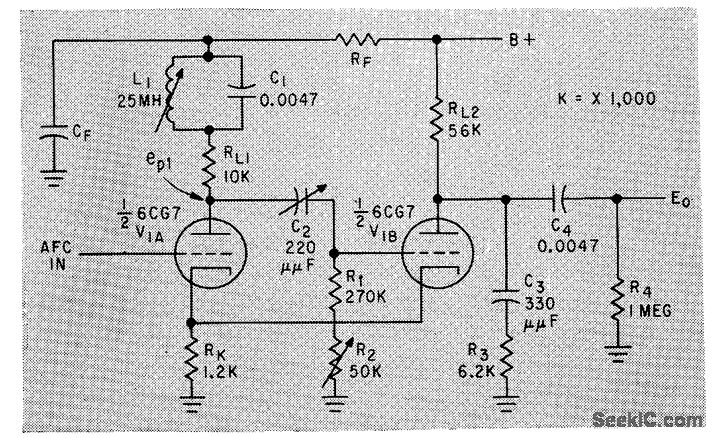

Cathode-couped multivibrator includes noise-immunizing tuned circuit in plate circuit of 'triode.-C. L. Barsony, Graphical Checkout of Multivibrator Design, Electronics, 33:8, p 55-57.
