The basic RC bridge oscillator

Published:2011/11/28 0:44:00 Author:Ecco | Keyword: RC bridge oscillator | From:SeekIC

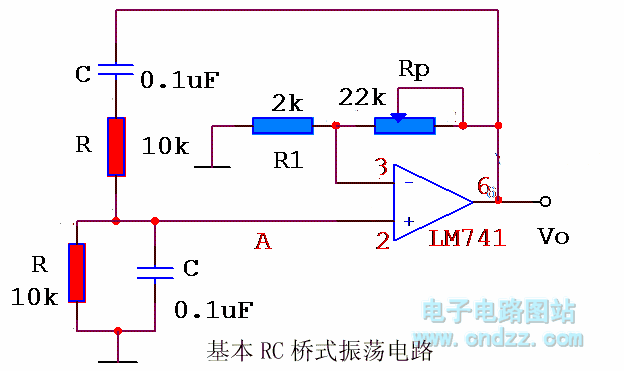

People can use an oscilloscope to observe theoutput waveforms of the oscillator circuit, if the output has no waveform or the output waveformhas thenoticeable distortion, people should adjust the Rp to make the output Vo be small and stable sine wave with lowdistortion .
