The circuit of 100kHz oscillator

Published:2012/8/21 3:40:00 Author:Ecco | Keyword: 100kHz oscillator | From:SeekIC

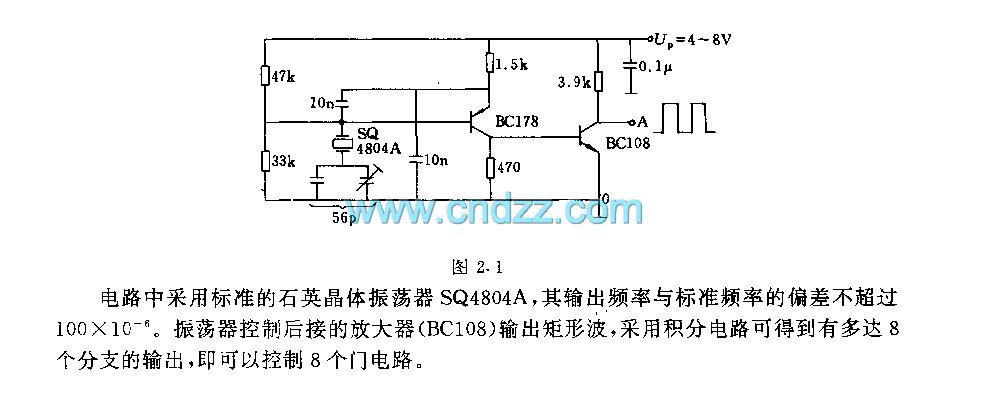

The circuit uses a standard quartz crystal oscillator SQ4804A, and the bias between output frequency and standard frequency does not exceed 100 × 10-6. The oscillator control the following amplifier (BC108) to output square wave, and it uses the integral circuit to obtain up to 8 branches of output, then to control the eight gates.
