The oscillator formed by CC4066

Published:2011/8/14 5:48:00 Author:leo | Keyword: Oscillator | From:SeekIC

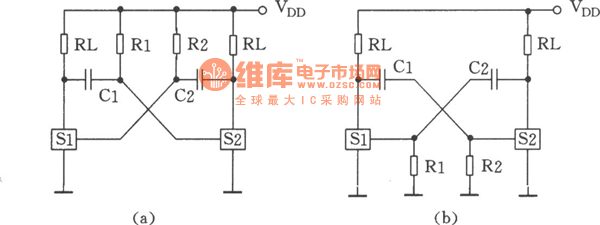

As the picture shows, this is an oscillator made by CMOS analog electronic switch CC4066. The circuit in the picture is formed by two electronic switches. The frequency of this oscillator is decided by resistance components. When the R1 =R2 and C1=C2, the circuit generates square wave and f=1/2RC.
