Variable quartz crystal oscillator (VXO) circuit

Published:2011/4/20 1:19:00 Author:Ecco | Keyword: Variable , quartz crystal , oscillator , VXO | From:SeekIC

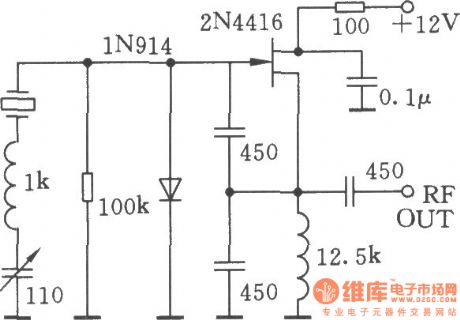

The chart shows two typical VXO circuits, in fact they arePierce circuits,the difference is theconnection.
