WARBLE_TONE_OSCILLATOR

Published:2009/7/13 23:13:00 Author:May | From:SeekIC

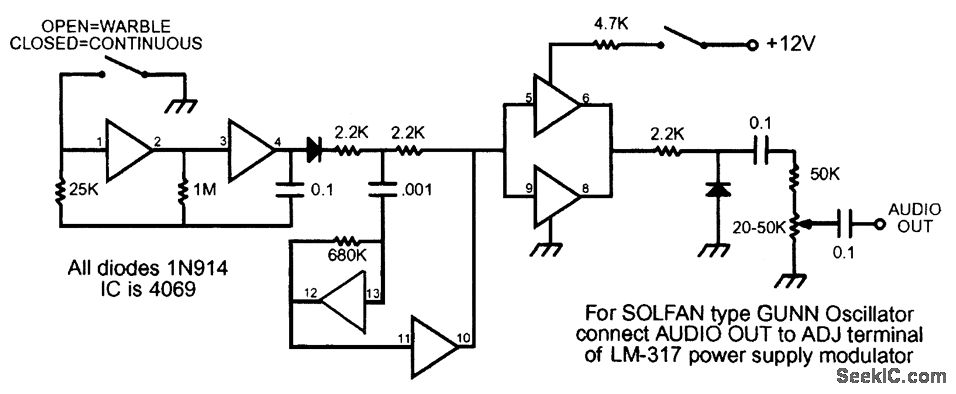

Originally used for microwave transmitter testing, this warble oscillator produces a tone that jumps between two frequencies.
