PULSE_FORMING_MODULATOR_FOR_LASERFLASH_LAMP

Published:2009/7/20 23:41:00 Author:Jessie | From:SeekIC

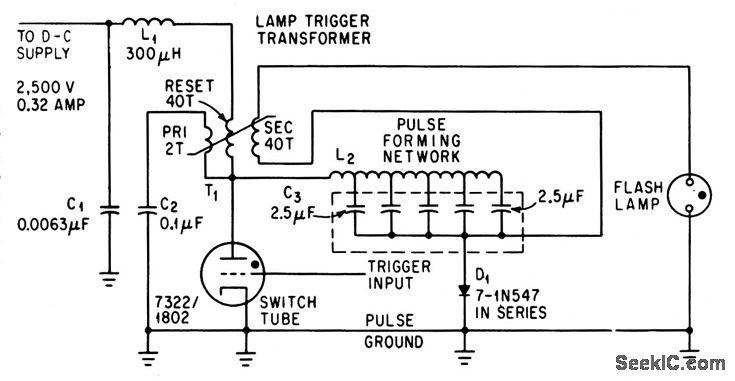

Saturating-core trigger transformer T1 responds to short high-voltage spike on leading edge of main pulse, generated by discharge of C2 through ceramic hydrogen thyratron switch tube when this tube is triggered on its grid.-S. J. Grabow- ski, Pulse Power Supply Design for Laser Pumping, Electronics, 36:51, p 33-35.
