PULSE_GENERATOR

Published:2009/6/17 21:21:00 Author:May | From:SeekIC

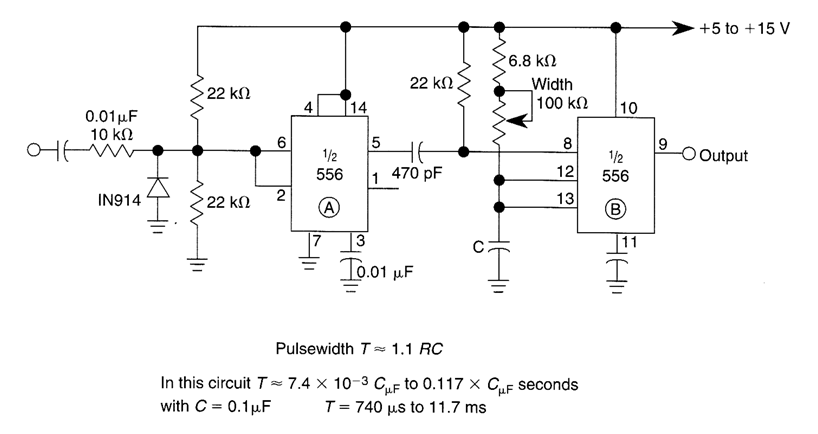

By using a 556 dual timer with IC1A acting as a waveshaper and IC1B as a pulse generator, a 10:1 range of pulse widths can be generated.A sine wave can be used to trigger this circuit.
