Programmable_triangle_square_wave_function_generator

Published:2009/7/20 21:58:00 Author:Jessie | From:SeekIC

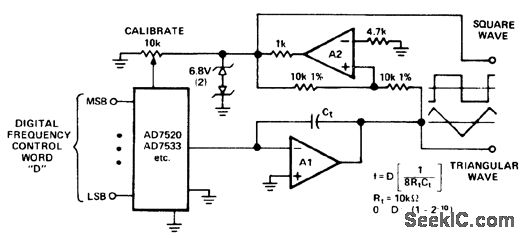

Programmable triangle/square-wave function generator. A1 and A2 are AD301 op amps. The peak-to-peak amplitude of both waveforms is approximately 15 volts (courtesy Analog Devices, Inc.).
