RANDOM_PULSE_DETECTOR

Published:2009/7/21 9:18:00 Author:Jessie | From:SeekIC

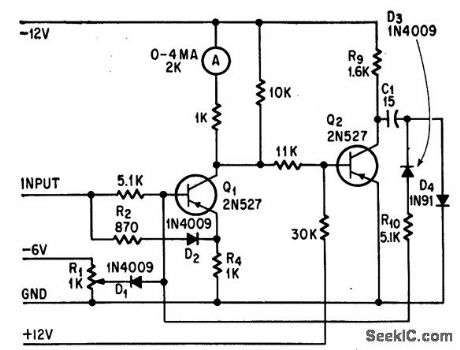

Either positive or negative pulses above predetermined minimum amplitude force Q1 into saturation and turn Q2 off, causing the meter to deflect immediately. Circuit may also be used as pulse stretcher or threshold detector.-C. F. Johnson and J. T. Loiselle, Bipolar Pulse Detector Features Meter Display, Electronics, 38:24, p 63.
