RUN_DOWN_CLOCK_SOUND_GENERATOR

Published:2009/7/9 4:39:00 Author:May | From:SeekIC

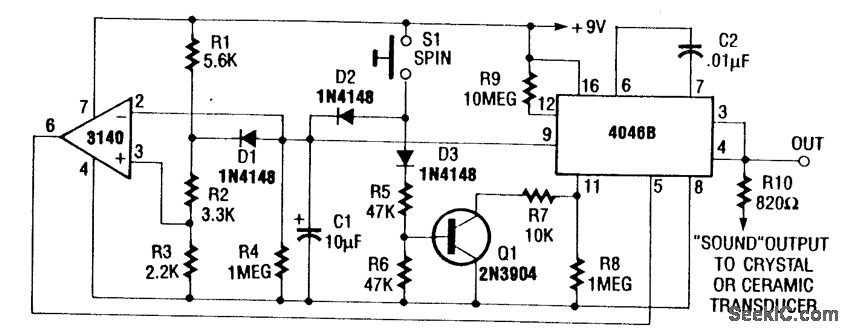

Used in electronic roulette or dice games, this circuit produces a clock signal that initially is several tens of kHz (depending on C2) and gradually decreases to zero in about 15 seconds, as C1 discharges through R4.
