Receiving Timing Signal Generation Circuit

Published:2011/7/19 8:06:00 Author:Sue | Keyword: Timing, Signal Generation | From:SeekIC

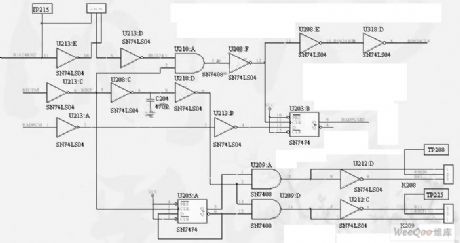

From the figure we can know that similar to transmitting timing signal, the way of timing signal generation is the same, so the waveform is omitted. What should be noted is that, the function of U213:A,B(74LS04), U203:B(74LS74) is to shape and output the received digital baseband signal. The function of U213:D,E(74LS04), U210:A(74LS08), U208:D,E(74LS08) is to output received clock signal 1024KHz by using the received enable signal(generated by software).
