SCHMITT_TRIGGER_RC_OSCILLATOR

Published:2009/7/22 2:26:00 Author:Jessie | From:SeekIC

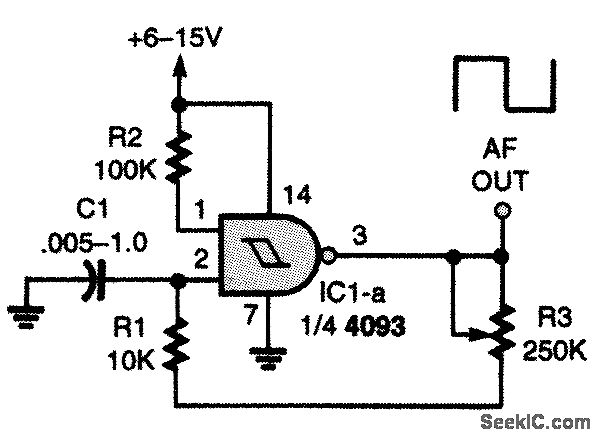

Here's another square-wave oscillator that uses a CMOS IC with input hysteresis. In this RC oscillator circuit, a single gate of a quad two-input NAND Schmitt-Trigger IC is the active element.
