SELF_TUNED_ULTRASONIC_GENERATOR

Published:2009/7/23 22:21:00 Author:Jessie | From:SeekIC

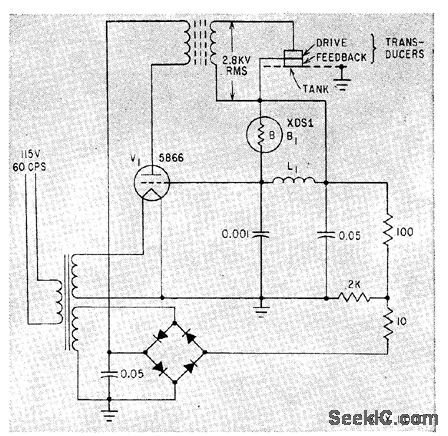

Current from feedback transducer goes through ballast lamp B1, keeping oscillator circuit V1 tuned to desired frequency between 20 and 40 kc.-S. Vogel, Ultrasonic Equipment in Industry, Electronics, 34:4, p 52-55.
