SIGNAL_POWERED_RECEIVER

Published:2009/7/19 23:36:00 Author:Jessie | From:SeekIC

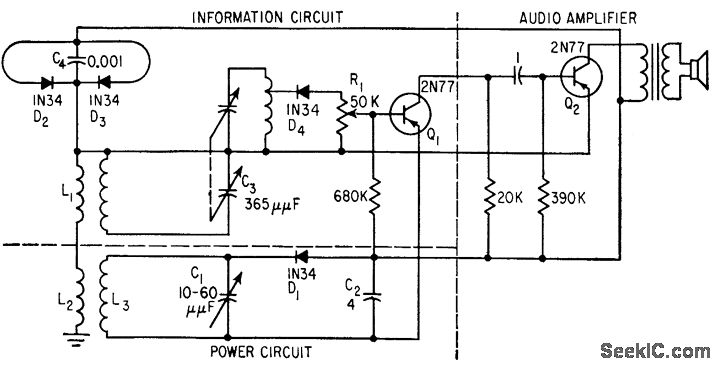

Circuit receives and reclines r-f radiation, stores resultant d-c energy in C2, and releases energy to transistors as required. Unique dipole rectifier provides efficient antenna-to-receiver coupling for frequencies of above 50 Mc.-L. It. Crump, Radio Waves Power Transistor Circuits, Electronics, 31:19, p 63-65.
