SILICON_TRANSISTORS_MINIMIZE_POWER_DRAIN

Published:2009/7/21 6:32:00 Author:Jessie | From:SeekIC

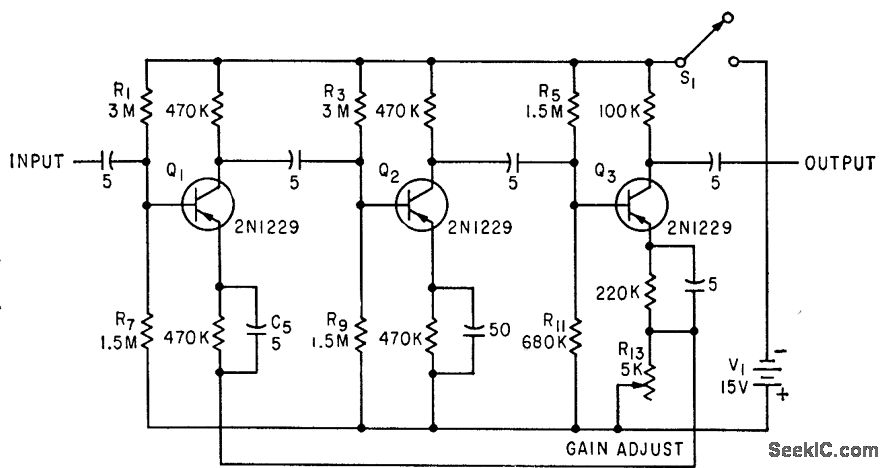

Used in conjunction with high-value circuit resistances to permit operation of preamplifier with battery drain of less than 1 nw. Gain is 100 for bandwidth of 18 kc. Intended primarily for use at room temperature.-C. D. Todd, Preamplifier Designed for Minimum Power Consumption, Electronics, 33:18, p 106-107.
