SIMPLE_DOUBLER

Published:2009/7/15 2:57:00 Author:Jessie | From:SeekIC

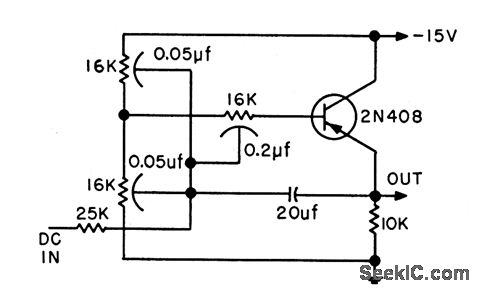

Uses distributed R.C networks consisting of resistive and conductive layers on dielectric substrate, with d-c applied between electrodes at 65 v for doubling frequency of ceramic-dielectric 400-cps oscillator.-M. M. Perugini, Race to Reduce Capacitor Size, EEE, 10:7, p 61-64.
