SIMPLE_LOW_FREQUENCY_RECEIVER

Published:2009/7/17 2:26:00 Author:Jessie | From:SeekIC

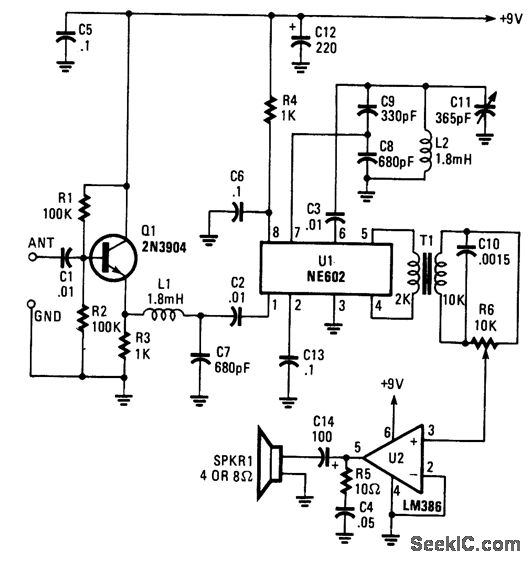

Using an NE602 heterodyne detector and U1 as an RF amplifier, this receiver tunes the middle portion of the low-frequency spectrum from 150 to 250 kHz. U2 is a loudspeaker amplifier.
